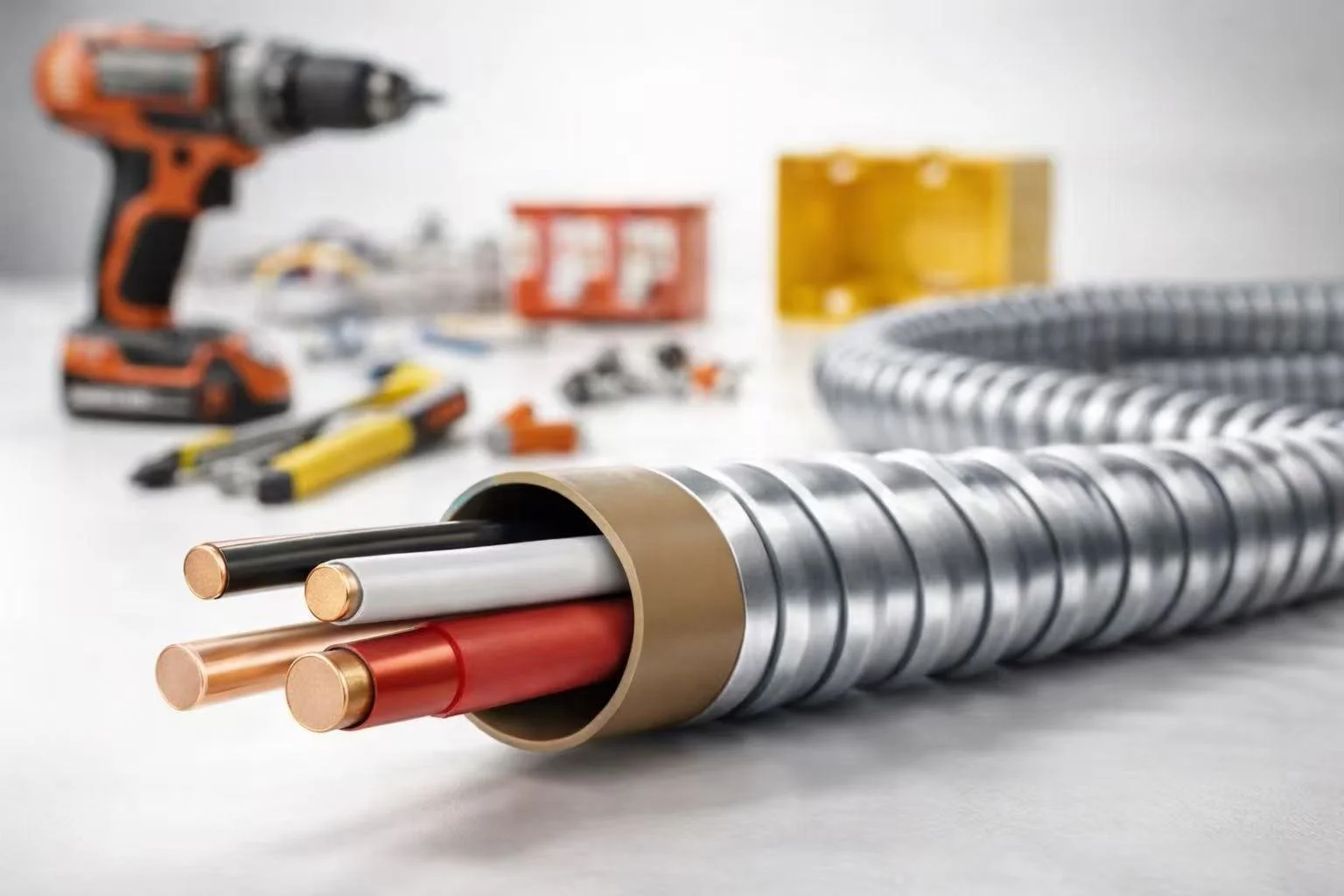

AC90 Armoured Cable

AC90 is a widely used armoured cable for commercial projects, offering a durable and code-compliant wiring solution for everyday installations. It is available in both copper and aluminum conductor configurations to meet varying project and budget requirements.

- Commercial buildings
- Ventilated and non-ventilated cable tray systems
- Exposed or concealed wiring
- Ceiling air-handling plenums
- Service entrance installations above ground
- Conductor: Solid or stranded copper (aluminum options available)
- Size Range: 14/12 AWG – 2/3/4 AWG
- Insulation: XLPE
- Armour: Aluminum interlocking armour (AIA)
- Voltage Rating: 600V
- Certification: CSA compliant
- Manufactured in accordance with CSA and UL standards
- Suitable for inspection and permitting
- Commonly used in Canadian commercial electrical projects
AC90 consists of two, three, or four insulated copper conductors with a bare bonding conductor, assembled without fillers and protected by aluminum interlocking armour.
XLPE insulation thickness is in accordance with CSA requirements.
- Stocked or planned stocking in Eastern Canada
- Suitable for bulk and project-based orders
- Reliable lead time for standard specifications
For current pricing, availability, and lead time, please contact us.
